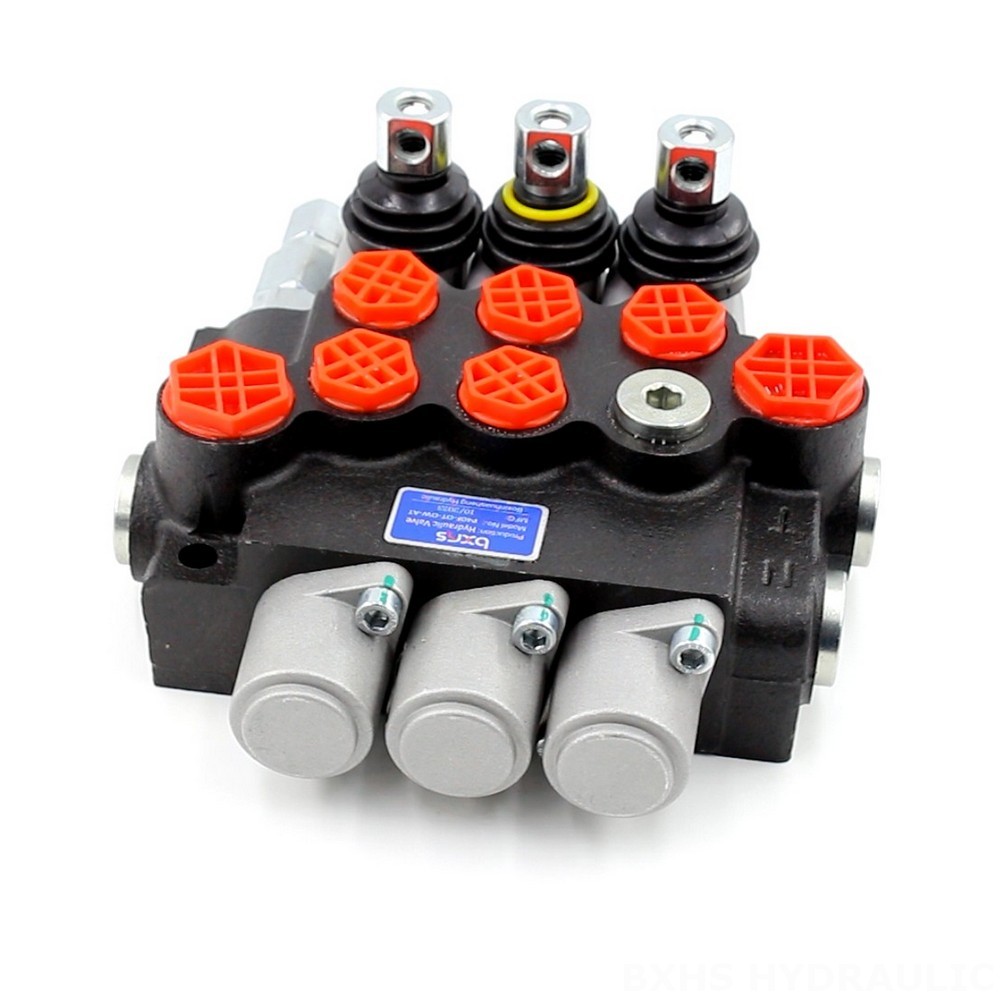

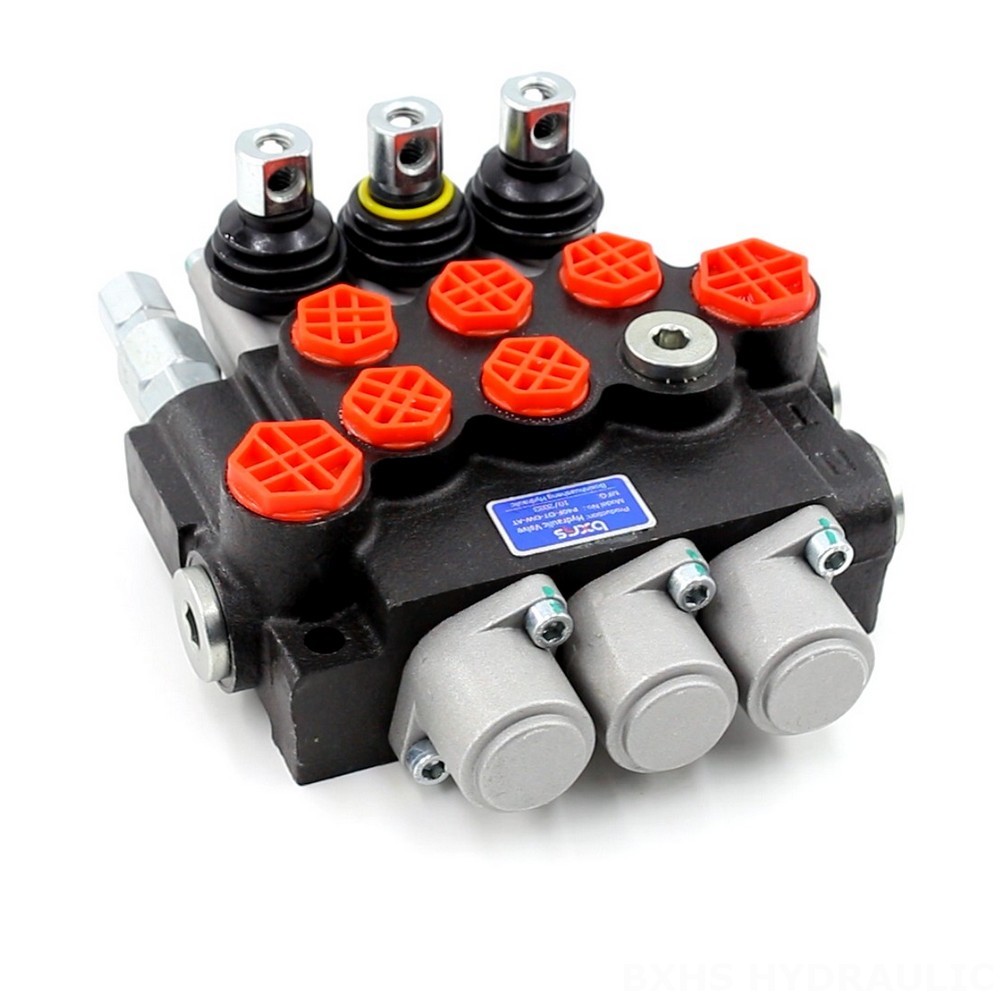

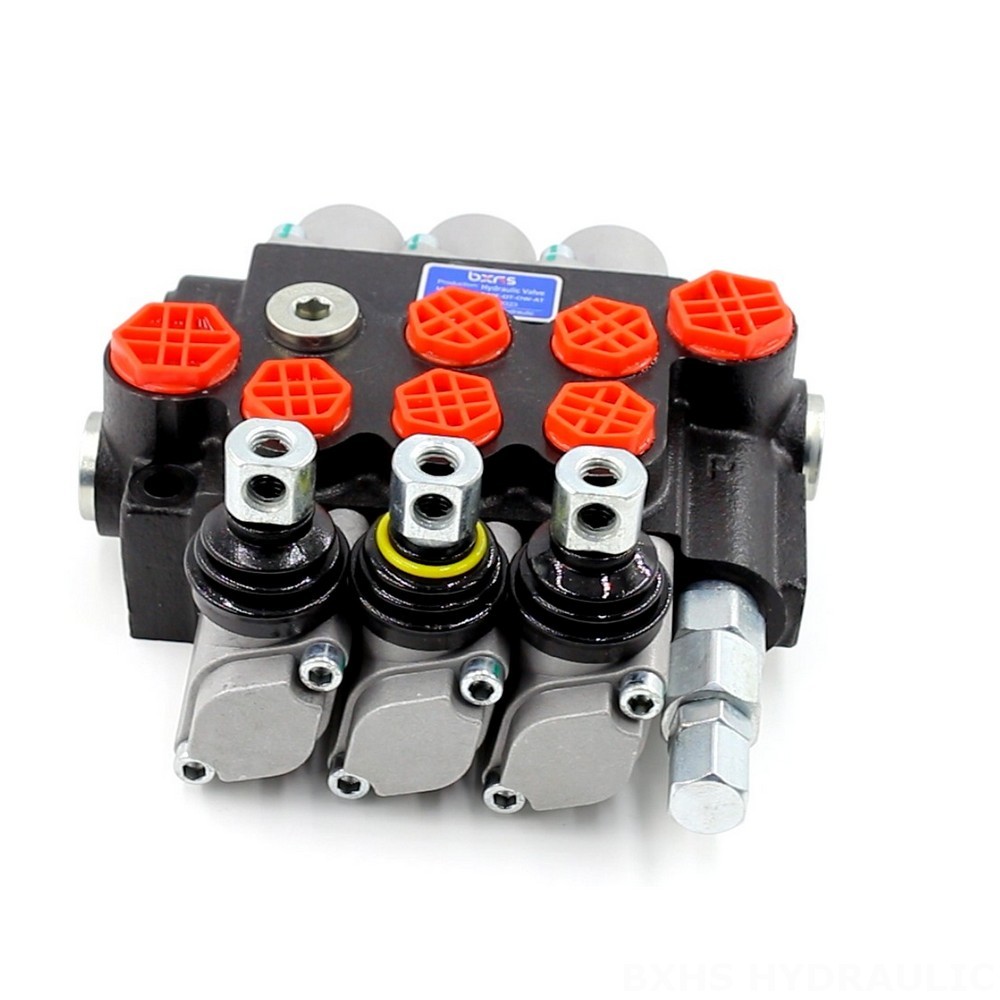

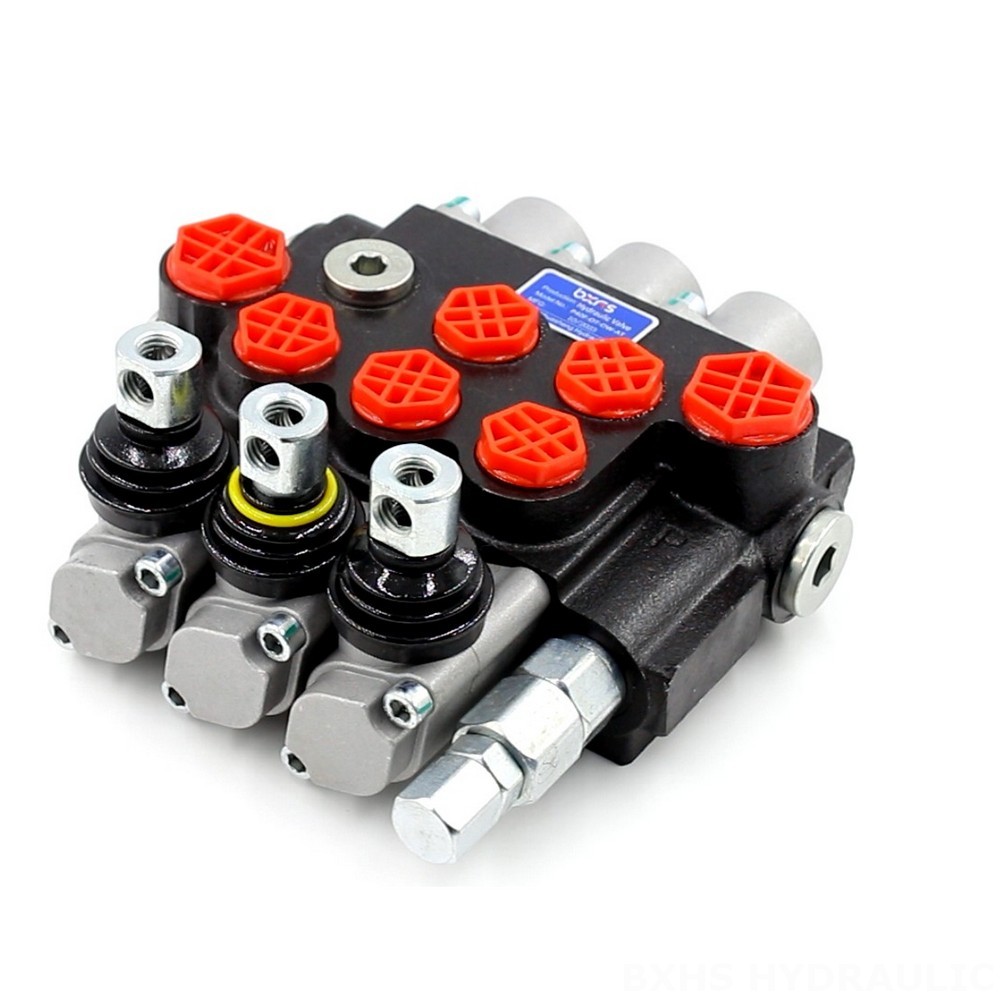

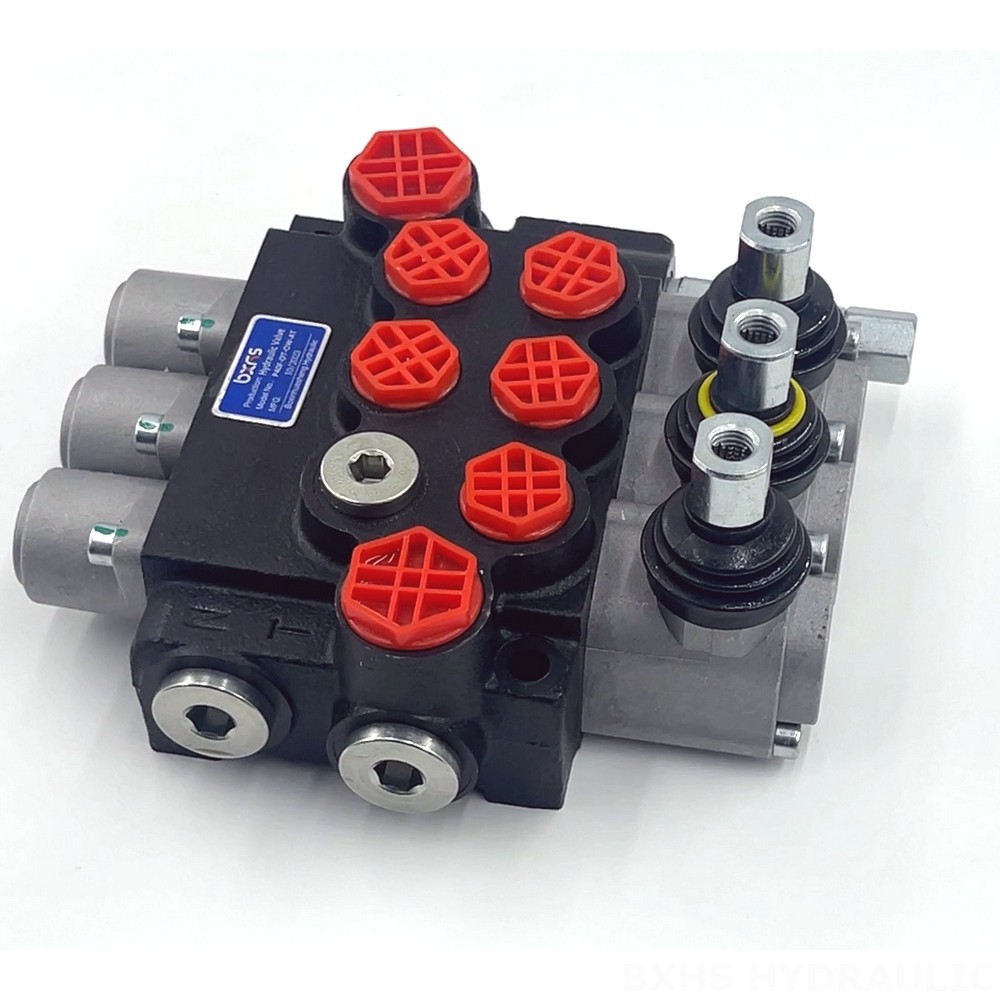

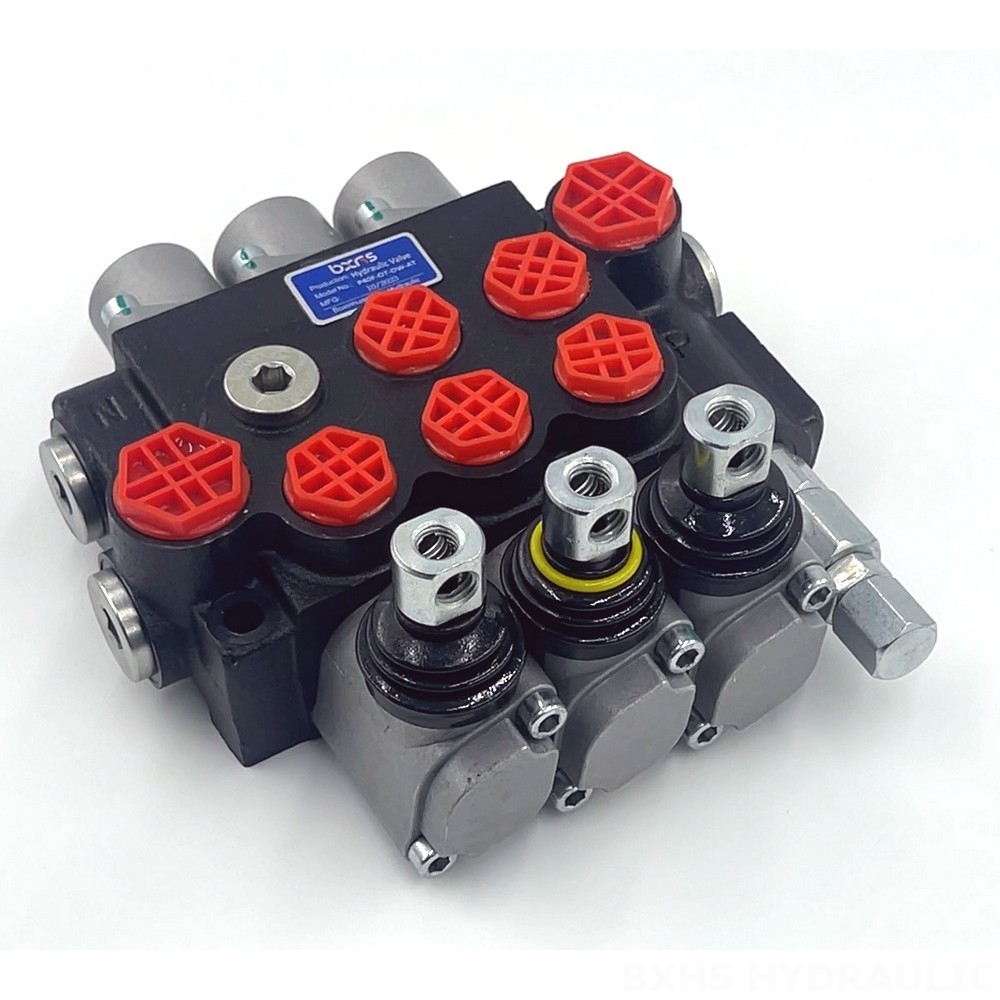

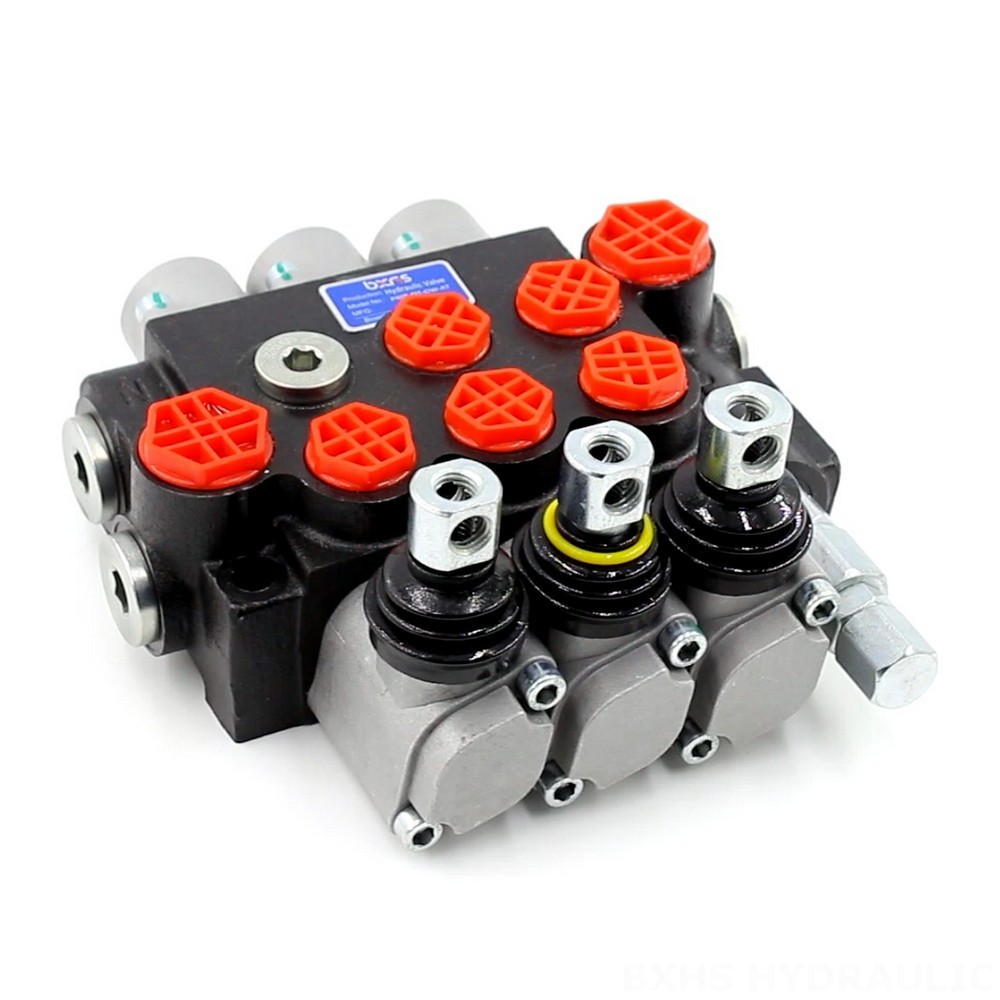

The P40 Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications. With its robust construction and reliable operation, this valve is ideal for controlling the flow of hydraulic fluid in various industrial, mobile, and agricultural equipment.
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
|---|---|
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 250 bar (3600 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
| Control Method | Manual |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
**Product Features and Benefits:**
* Manual control for precise and responsive operation
* 3 section design allows for independent control of multiple hydraulic circuits
* Monoblock construction provides a compact and durable design
* 40 L/min rated flow capacity handles high flow demands
* 250 bar max pressure rating ensures reliable performance in demanding applications
* 15 - 75 mm²/s operating viscosity range accommodates a wide range of hydraulic fluids
* -40°C to +80°C ambient temperature range for use in harsh environments
* 3 spool design provides flexibility and versatility
**Applications:**
This valve is commonly used in various applications, including:
* Material handling equipment
* Construction and earth moving equipment
* Agricultural machinery
* Industrial vehicles
